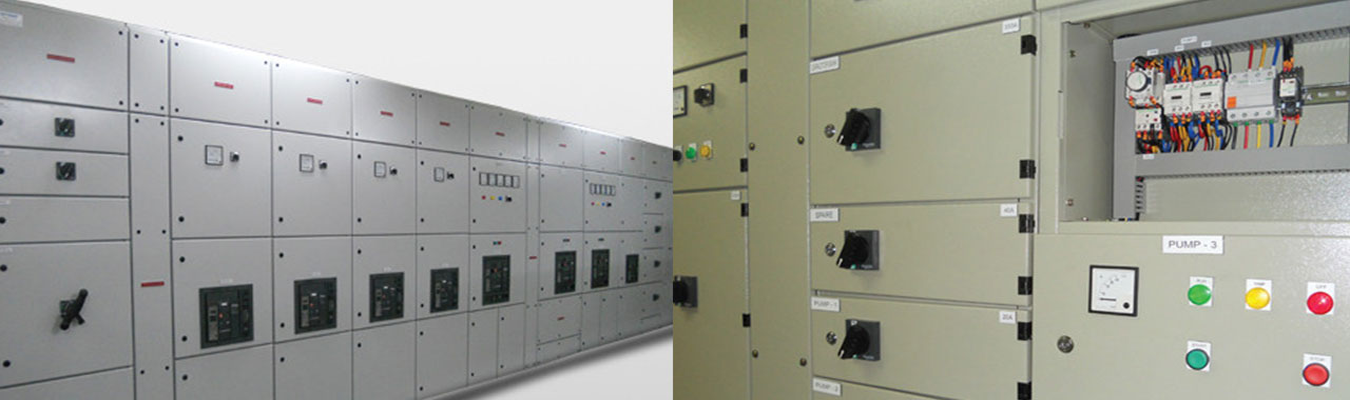

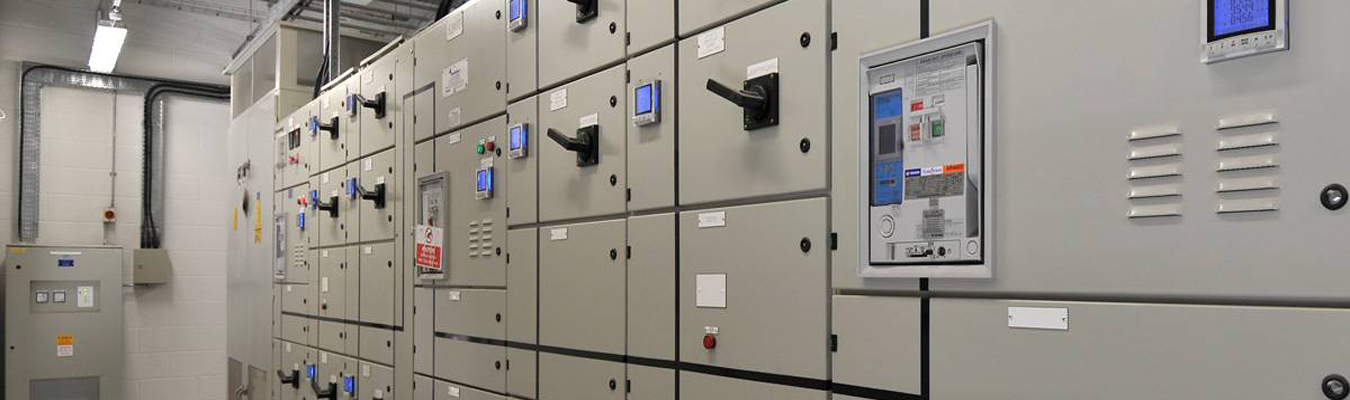

Main Distribution Board

Separation up to Form 4, Type 1 to 7

  • Rating 630 A to 6300 A

  • Panels for front access or front/rear access construction

  • Ample cabling space for easy connections

  • Top and bottom cable entry

  • Protection class IP 3 1 to IP 54

  • Ambient temperature rating 50

  • Factory built to client’s specifications.

INCOMER ACB, 3-pole or 4-pole, 630 to 6300A, 65 to 85kA, fixed or drawout pattern, manual or motor operated MCCB, 3-pole or 4-pole, 630 to 1600A, 50 to 85kA, fixed or plug-in pattern, manual or motor operated.Load break switch 630A to 1600A, 3-pole or 4-pole.

BUS COUPLER ACB or MCCB as above Electrical and/or mechanical interlocking between incomers and bus coupler can be provided, as well as various protection, tripping and indicating functions.

OUTGOINGS ACBs as above MCCBs, 3-pole or 4-pole, up to 1600A, 30 to 85kA Fuse switches 3-pole,up to 800A, 100kA

BUS BARS H.C.H.D. copper, electrolytically tinned and colour coded

ENCLOSURE Electrogalvanized sheet steel 2 mm, polyester powder coated to RAL 7032 textured, with removable rear covers, extendable on either side.

CABLING Removable gland plates on top and bottom, non-ferrous type for single core cables, punched to client’s requirements. Termination for up to 4 cables per phase can be provided
