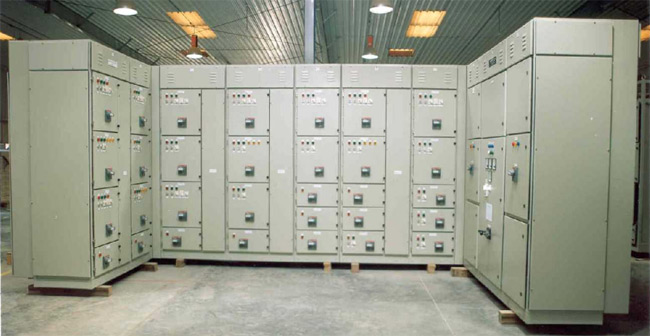

Power Control Center

Separation up to FORM 4,Type 1 to 7

  • Rating from 63A to 2500A

  • Panels for front access or front/rear access construction

  • Starters designed for Type2 coordination

  • Draw-out or fixed pattern

  • Ample cabling space for easy connections

  • Top and bottom cable entry

  • Protection class IP 31 to IP 54

  • Ambient temperature rating 50째 C

  • Factory built to client’s specifications

  • INCOMER ACB, 3-pole or 4-pole, 630 to 2500A, 65 to 85kA, fixed or drawout pattern, manual or motor operated, MCCB, 3-pole or 4-pole, 100 to 1600A, 50 to 85kA, fixed or plug-in pattern, manual or motor operated ,Fuse switch 63A to 800A, 3-pole or 4-pole ,Load break switch 63A to 1600A, 3pole or 4-pole

  • OUTGOINGS MCCB, 3-pole or 4-pole, up to 1600A, 30 to 85kA,Fuse switches 3-pole, up to 800A100kA, Starters can be equipped as DOL, Y- , auto transformer, soft start or variable frequency drive starter

  • BUS BARS H.C.H.D. copper, electrolytic ally tinned and color coded

  • ENCLOSURE Electro galvanized sheet steel 2 mm, polyester powder coated to RAL 7032 textured, with removable rear covers, extendable on either side.

  • CABLING Removable gland plates on top and bottom, non-ferrous type for single core cables, punched to client’s requirements, Termination for up to 4 cables per phase can be provided
